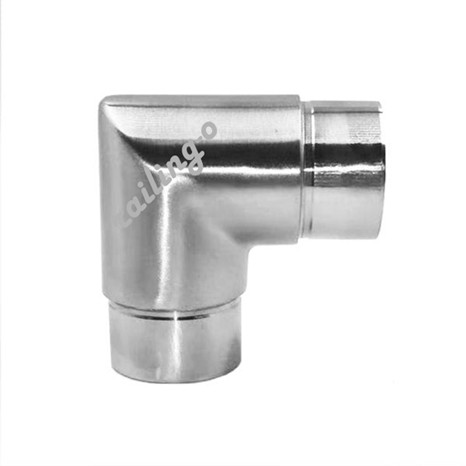

Stainless steel sharp 90 degree connector – stainless steel stair parts , material in grade 304(indoor) and 316L(outdoor), available finish is 320 grit satin and 600 girt mirror. Inner height of this fitting of is 35.2mm. Normally, thickness is 1.5/2.0mm. Use for stainless steel square handrail system.

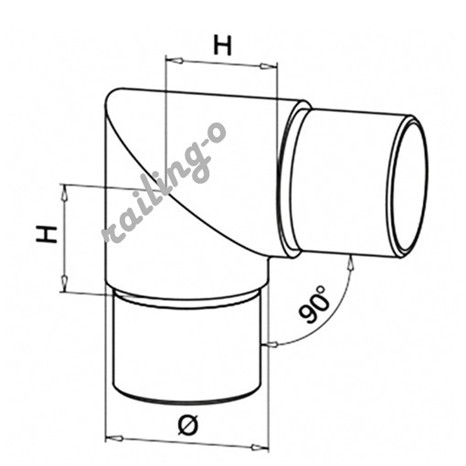

Code | Φ | H |
QL003.033 | 33.7X2 | 25 |
QL003.042 | 42.4X2 | 30 |
QL003.642 | 42.4X2.6 | 30 |
QL003.048 | 48.3X2 | 35 |
QL003.648 | 48.3X2.6 | 35 |
