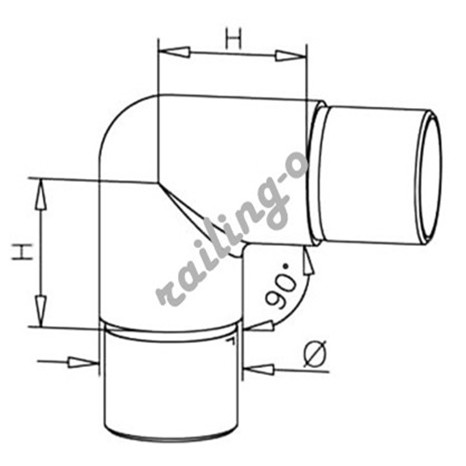

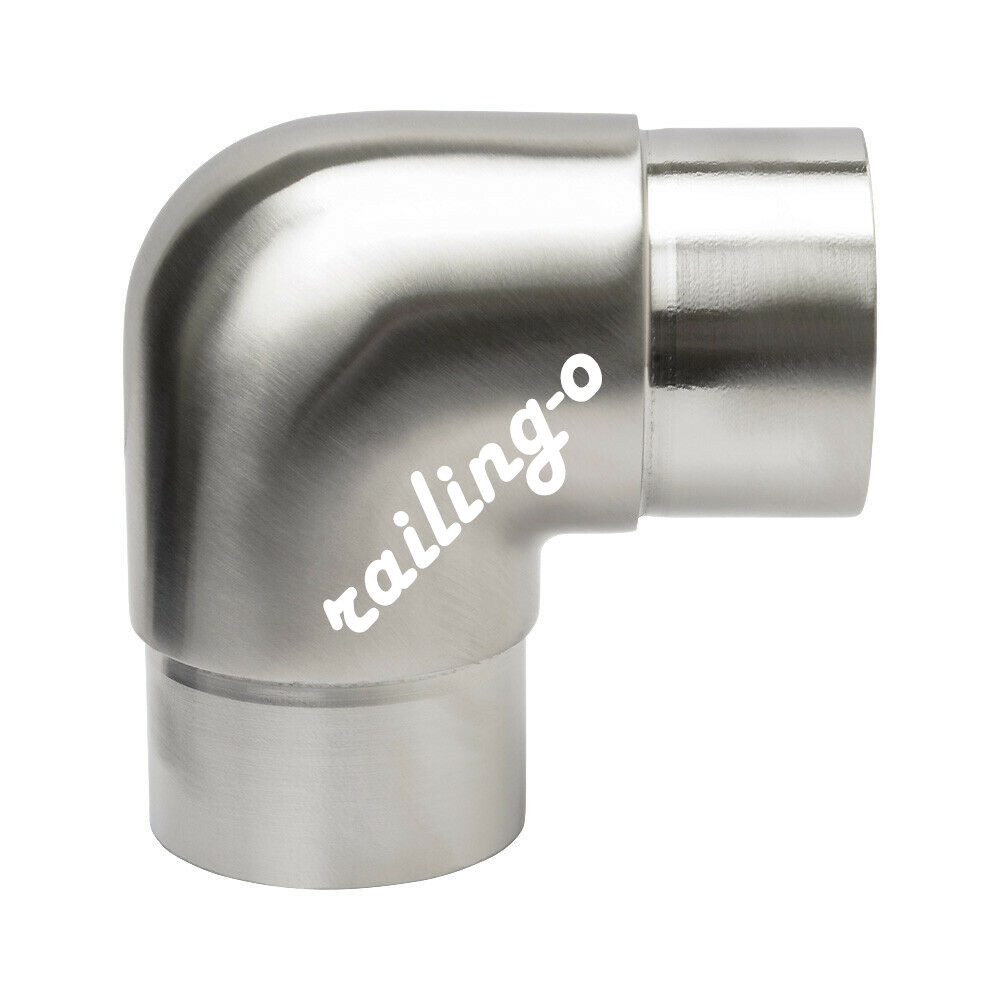

Stainless steel smooth 90 degree connector -stainless steel handrail parts , material in grade 304(indoor) and 316L(outdoor), available finish is 320 grit satin and 600 girt mirror. Inner height of this fitting of is 35.2mm. Normally, thickness is 1.5/2.0mm. Use for stainless steel balustrade fittings.
Code | Φ | H |
QL002.033 | 33.7X2 | 25 |
QL002.042 | 42.4X2 | 30 |
QL002.642 | 42.4X2.6 | 30 |
QL002.048 | 48.3X2 | 35 |
QL002.648 | 48.3X2.6 | 35 |
